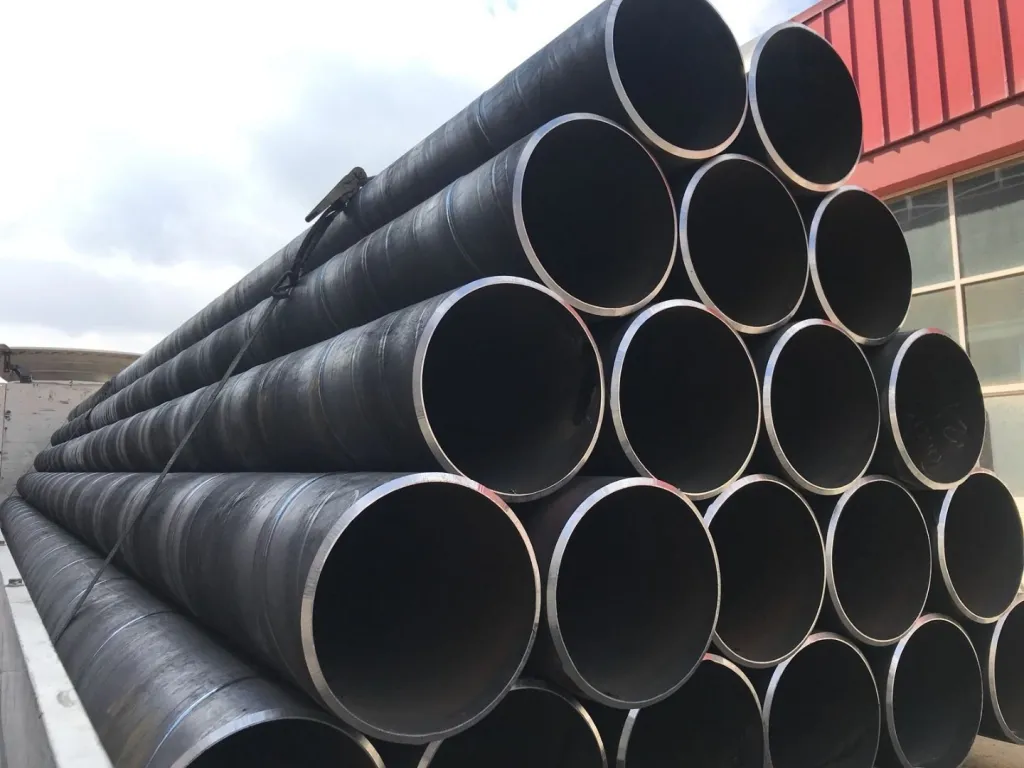

HSAW / Spiral Welded Pipes from Turkey
API 5L PSL1/PSL2 grades X42–X70, OD 508–2540 mm, coating and third-party inspection support from Turkish partner mills.
Spiral Welded Pipe Supply Scope
Select your HSAW/SSAW requirement and receive a project-specific offer.
PSL1 / PSL2 Spiral Line Pipe
OD 508–2540 mm for transmission and infrastructure projects.
Externally Coated HSAW Pipe
3LPE, 3LPP, and FBE options for corrosion control and burial service.
Cement Lined Water Pipe
CML-lined spiral pipe for potable water and wastewater projects aligned with AWWA C200 / EN 10224 project specs.
Large Diameter Piling Pipe
Spiral welded pipes for caissons, marine structures, and foundations.
HSAW Technical Reference
Core API 5L and dimensional data used during procurement qualification, including helix-angle, NDT, and coating selection notes.
API 5L Grades & Mechanical Properties
| Grade | Min. Yield (MPa) | Min. Tensile (MPa) | Typical Application |
|---|---|---|---|
| Gr.B | 241 | 414 | Water distribution, piling |
| X42 | 290 | 414 | Low-pressure transmission |
| X46 | 317 | 434 | General gas/water transmission |
| X52 | 359 | 455 | Main grade for gas and water lines |
| X56 | 386 | 490 | Moderate-pressure transmission |
| X60 | 414 | 517 | High-pressure gas |
| X65 | 448 | 531 | Long-distance trunklines |
| X70 | 483 | 565 | High-pressure long-distance lines |
Diameter & Wall Thickness Range
| OD Range | WT Range | Typical Grade | Typical Use |
|---|---|---|---|
| 508–762 mm | 6–12 mm | X52, X60 | Distribution, trunk water mains |
| 813–1219 mm | 8–16 mm | X52, X65 | Oil/gas trunklines |
| 1220–1626 mm | 10–20 mm | X65, X70 | Major transmission |
| 1626–2540 mm | 12–25 mm | X52–X65 | Bulk water, piling |
PSL1 vs PSL2
| Requirement | PSL1 | PSL2 |
|---|---|---|
| Chemistry limits | Standard | More restrictive |
| Impact testing | Not mandatory | Mandatory |
| Fracture toughness (DWTT) | Not mandatory | Mandatory for high-strength grades |
| NDT scope | Hydrostatic + seam checks | Hydrostatic + seam/body NDT per project specification |
| Traceability | Basic | Enhanced |
| Sour service | Not covered | Optional ISO 15156 / NACE supplementary requirements |
Coating & Lining Options
| Type | Description | Temperature | Use Case |
|---|---|---|---|
| 3LPE | Three-layer polyethylene | Up to 80 °C | Buried pipelines |
| 3LPP | Three-layer polypropylene | Up to 110 °C (continuous), 140 °C (peak) | High-temp service |
| FBE | Fusion bonded epoxy | Up to 95 °C | Gas pipelines |
| CML | Cement mortar lining | 0 °C to 50 °C | Potable/wastewater |
| Bitumen | Protective external layer | Ambient | Piling/marine (project standard, e.g. EN 10300, to be confirmed) |
Ready to Source Helically Welded Pipe from Turkey?
Steel Pipes from Turkey?
Share your RFQ and receive a detailed quote with grade, size, coating, and delivery options.
Why Source HSAW Pipes from Turkey?
Cost-competitive multi-mill sourcing with QA coordination and export logistics from Turkish ports.
Competitive Landed Cost
Cost-efficient large-diameter supply compared with many alternatives.
Strong Export Logistics
FOB/CFR/CIF from major Turkish ports with reliable shipment planning.
Certified Partner Mills
API 5L monogram-authorized production and controlled QA process.
Inspection Coordination
Independent third-party inspection before shipment release.
Quality Assurance and Documentation
Production is carried out by certified Turkish partner mills. MetalFromTurkey coordinates QA and documentation flow.
All certifications are held by partner mills. We manage sourcing, inspection, and document control for your project.
MetalFromTurkey Engineering & QA — Project Supply TeamTypical End-Use Sectors
HSAW pipes are selected for large-diameter transmission and structural projects.
Oil & Gas Pipelines
API 5L PSL2 grades for transmission and gathering lines.
Water Infrastructure
Large-diameter potable and wastewater mains, typically aligned with AWWA C200 / EN 10224 and optional NSF/ANSI 61 requirements.
Structural Piling
Caissons, quay walls, and foundation applications.
Marine Projects
Bitumen or epoxy protected pipes for coastal use with project-specific coating specification.
How to Order HSAW Pipe
Share your technical scope and receive a detailed commercial offer.
Submit RFQ
Provide OD, WT, grade, coating, length, quantity, and destination.
Receive Offer
Get multi-mill quotation with lead time and Incoterms.
Order Confirmation
Finalize technical details and reserve production slot.
Inspection & Release
Coordinate third-party checks and shipment release.
Shipment & Documents
Receive MTC, IRC, and export documents before/with shipment.
Common Questions
What is the difference between SSAW and LSAW?
SSAW/HSAW has a spiral seam and supports very large diameters. LSAW has a longitudinal seam and is commonly used for thicker-wall, high-pressure applications at lower maximum diameters.
What helix angle is typically used for HSAW pipe?
Typical helix angle is selected by mill design and project target, commonly in the 45° to 80° range. Angle selection affects weld orientation and stress distribution, so project tolerances are confirmed in the technical offer.
How are ovality and helical seam tolerances controlled?
Ovality and seam offset tolerances are controlled to the applicable API 5L/project tolerance package and verified during dimensional inspection before release.
What is the maximum diameter you can supply?
Partner mills can supply up to 2540 mm (100 in.) outside diameter depending on project schedule and grade.
Can you supply PSL2 sour service requirements?
Yes, PSL2 with NACE-related supplementary requirements can be coordinated for suitable project scopes.
Which coatings are available?
3LPE, 3LPP, FBE, CML and bitumen options are available based on service environment. For 3LPP, continuous service is typically up to 110 °C with short-term peak capability to 140 °C.
Do you provide water-pipe standards like AWWA C200 or EN 10224?
Yes. For municipal and utility projects, offers can be aligned with AWWA C200 and EN 10224 requirements, with NSF/ANSI 61 scope included when specified for potable-water contact.
Can you support preliminary working pressure checks?
Yes. Preliminary wall-thickness screening can be shared using Barlow-based calculations, then finalized against the governing project code and design factors.
How quickly can I get a quotation?
We aim to respond promptly after receiving complete RFQ details.
Request Your
HSAW Pipe Quotation
Share grade, diameter, wall thickness, coating, and quantity. Our sourcing team responds promptly.
